Full Custom Wood Garage Door

Our full-custom wood doors are specifically designed and handcrafted to create an authentic feel that will complement all styles of architecture. Built with exceptional craftsmanship and attention to detail, every door is made to your specifications and can be constructed with nearly any species of wood that is desired such as Mahogany, Western Red Cedar, IPE, Walnut, and many more. 18 standard options available in paint grade or stain grade made up of 4 to 5 layers which hides the rail construction leaving a genuine carriage house impression. Each design can be customized to add the “it factor” to the homes appearance.

QTY
CHOOSE YOUR MODEL
Size

FULL CUSTOM SPECIFICATIONS

4 Layer Door

Paint Grade (primed white)

Back (layer 1): ¼” Luan

Frame (layer 2): 1-3/32” FJ (Finger Joint) Hem Fir (Stiles every 24”)

Insulation: 1-3/32” Polystyrene

Face (layer 3): 3/8” Baltic Birch Ply

Trim (layer 4): ½” Extira MDF

Stain Grade (unfinished)

Back (layer 1): ¼” Luan

Frame (layer 2): 1-3/32” FJ (Finger Joint) Hem Fir (Stiles every 24”)

Insulation: 1-3/32” Polystyrene

Face (layer 3): 3/8” Aquatek Marine Ply

Trim (layer 4): 11/16” Clear Superior Alder

5 Layer Door

Stain/Paint Grade

Back (layer 1): ¼” Luan

Frame (layer 2): 1-3/32” FJ (Finger Joint) Hem Fir (Stiles every 24”)

Insulation: 1-3/32” Polystyrene

Face (layer 3): ¼” Luan

Face (layer 4): Materials Vary (See Options Below)

Trim (layer 5): Materials Vary (See Options Below)

Track

All 2" tracks are 12" or 15" Radius

14-gauge horizontals with 17-gauge verticals

All tracks are mounted with reverse continuous jamb angle

Horizontals are reinforced with 13 gauge angle mounted continuous to the length of the horizontal.

All 3" tracks are 15" Radius - 12 gauge and use is determined by weight of door.

Options: Low Headroom (0" or 3.5" ), High Lift, Vertical Lift, Follow the Pitch

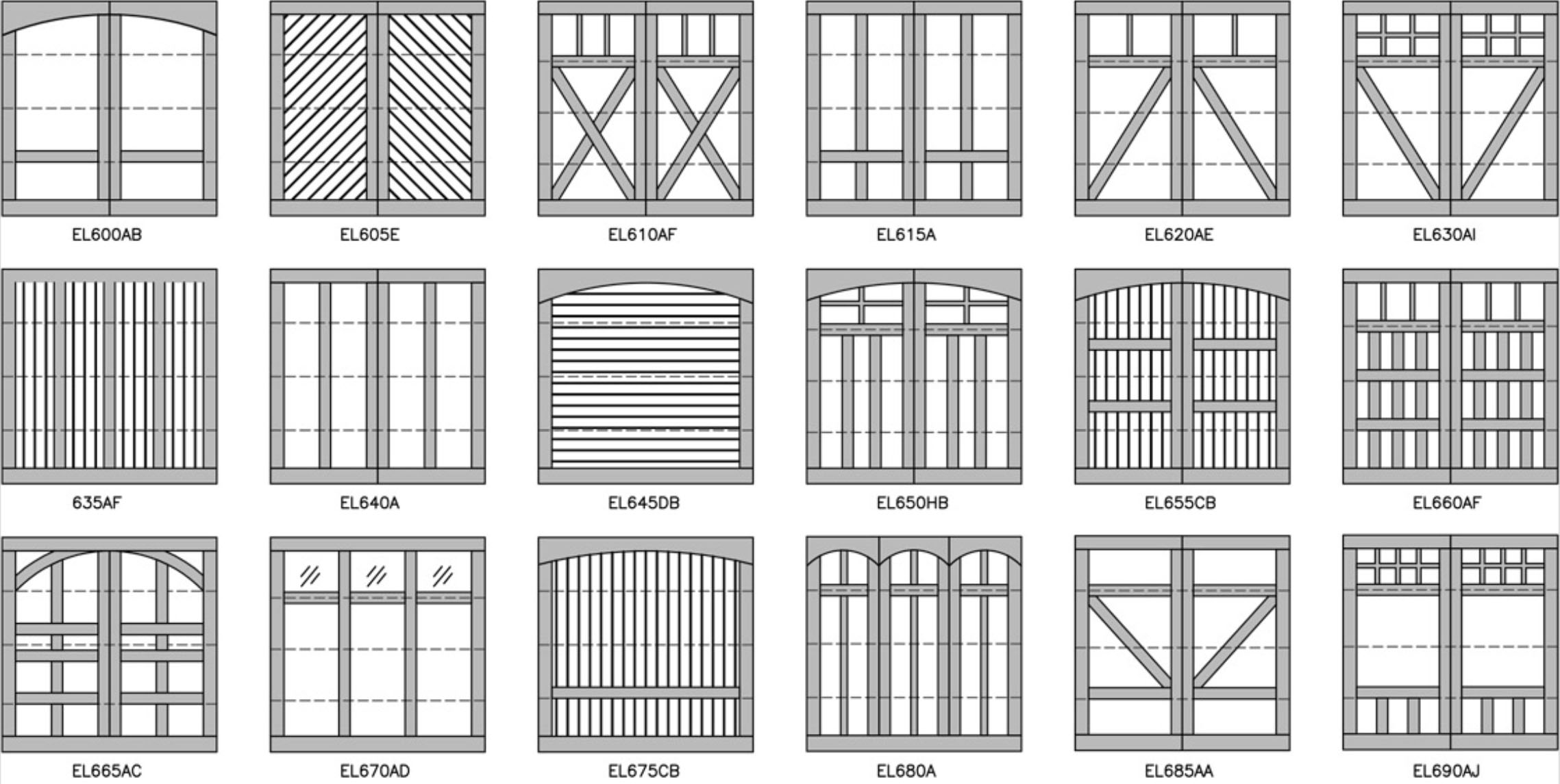

Door Styles

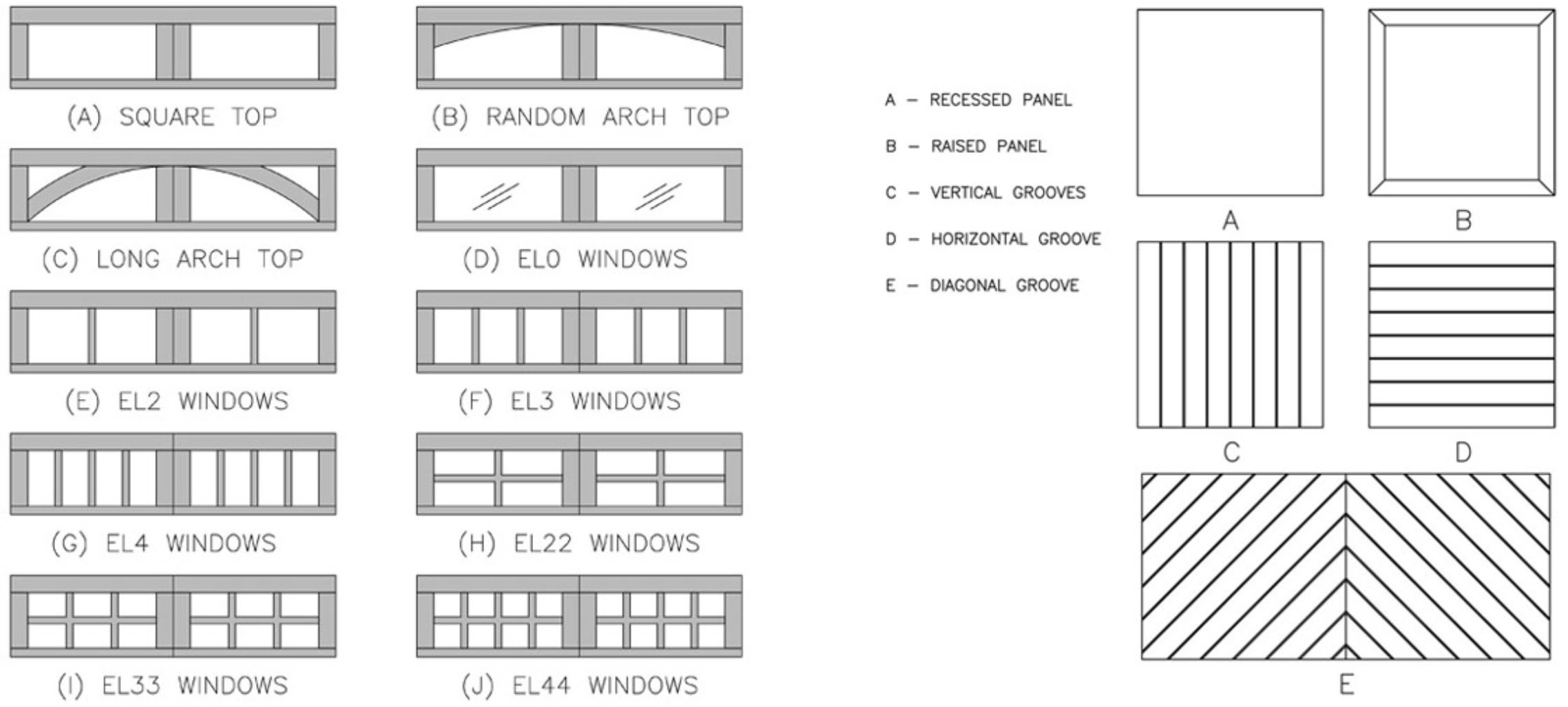

Window and Panel styles
